Campagnolo · ref FC-01CH · 1992–1994
Part of the Campagnolo Chorus 8-speed groupset.
The FC-01CH is the Chorus crankset of the 1992–1994 8-speed generation. Velobase lists a 135 mm bolt circle, crank lengths of 170, 172.5 and 175 mm, 9/16 x 20 pedal threads, a 111 mm square-taper bottom bracket, and plain (unfluted) aluminium arms. The 135 mm bolt circle allows an inner ring down to 39 teeth, which is the main practical difference from the 144 mm Nuovo Record crank. Velobase notes it has a self-extracting crank bolt and that it borrowed styling from the discontinued Croce d'Aune group, which leads to confusion with Athena cranks of the same years. The first Chorus crank (706/101, 1988–1991) also used a 135 mm bolt circle and a square taper, so check the model if period accuracy matters. The matching BB-01CH bottom bracket was offered in English and Italian threads, which means the crank itself does not tie you to an Italian frame.
Buying guide
About 458 listings turn up, but the search also catches other Chorus generations, so only some are the 1992–94 FC-01CH; most complete 135 mm bolt-circle sets run $70–150 delivered. Prioritise a stated 135 BCD or a 39-tooth inner ring (a 144 mm crank can't take one), both self-extracting bolts and caps, and the length you want (170, 172.5 or 175 mm). Check whether a bottom bracket is included and in which thread, and don't pay a premium for a 1988–91 first-generation crank or a 130 BCD set if you are matching an 8-speed group.
$54.39est. delivered
About $54 delivered on Buy It Now from a 100% seller, with 53/39 rings, 175 mm arms and 135 BCD stated. The title is cut off after "Both fixing bolts i", so confirm the self-extracting bolts and caps are included.

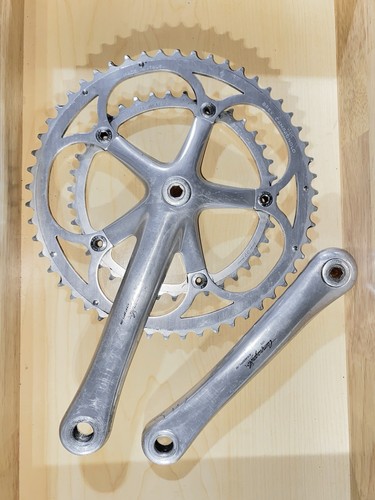

CAMPAGNOLO CHORUS Crankset 53/39t 175 mm. 135 BCD. Both fixing bolts i
$97.52est. delivered
A 53/39, 172.5 mm set for about $98 delivered with Best Offer from a 100% seller, low in the band. The title is cut off after "with BSA bottom", so ask whether an English-thread bottom bracket comes with it.
Campagnolo Chorus Crankset 53/39t 172.5mm Square Taper with BSA bottom
Delivered prices include shipping as eBay quoted it to a US address on Oct 3, 2026. Many sellers charge by distance, so your total may differ; eBay shows your exact total before you buy.
Snapshot
Snapshot captured — listings may have ended
Delivered prices include shipping as eBay quoted it to a US address on Oct 3, 2026. Many sellers charge by distance, so your total may differ; eBay shows your exact total before you buy.
Used$54.39est. delivered
$39.44 + $14.95 shipping
Buy It Now$39.44
Good buy
Cheapest complete set at about $54, with 135 BCD stated; check the fixing bolts are there.
Seller: danicaroki
100% positive
Used$97.52est. delivered
$90.00 + $7.52 shipping
Buy It Now$90.00
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Good buy
53/39, 172.5 mm at about $98 with Best Offer; worth asking about the bottom bracket the title mentions.
Seller: luckybikesco
100% positive
Used$56.02est. delivered
$49.99 + $6.03 shipping
Buy It Now$49.99
Our take
Titled as a crank arm set with no rings mentioned; cheap at about $56, but ask whether chainrings and bolts are included.
Seller: timmy_82001
100% positive
Used$101.89est. delivered
$92.48 + $9.41 shipping
Buy It Now$92.48
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
53/39, 172.5 mm at about $102 with Best Offer from a 100% seller; a fair mid-band price.
Seller: terra_nov
100% positive
Used$104.10est. delivered
$90.00 + $14.10 shipping
Buy It Now$90.00
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
Early-1990s 170 mm set with 53/39 rings at about $104; ask whether it's the FC-01CH or the earlier 706/101.
Seller: recycleabicyclenyc
99.8% positive
Used$75.17est. delivered
$55.18 + $19.99 shipping
Buy It Now$55.18
Heads-up: check the seller
About $75 for a 175 mm 53/39 set, but the title matches another seller's, so compare photos and seller history.
Seller: pedalersplayground
99.9% positive
New old stock$265.00est. delivered
$250.00 + $15.00 shipping
Buy It Now$250.00
Heads-up: priced high
Titled 130 BCD, which doesn't match this crank's 135 mm, and listed as NOS at about $265; ask before paying.
Seller: greatsales40
99% positive
Used$369.99delivered
$369.99 · free shipping
Buy It Now$369.99
Heads-up: priced high
A 1988–91 first-generation crank in graphite at $370, not the 1992–94 FC-01CH, and over three times the typical price.
Seller: benscycle
100% positive
