Shimano · ref FC-7400 series (FC-7410 from 1994) · 1984–1996
Part of the Shimano Dura-Ace 7400 groupset.
This is the double crankset of the Dura-Ace 7400 era, from 1984 to the arrival of 7700 in 1997. It uses a square-taper bottom bracket and 130 mm BCD chainrings, which Velobase lists as the usual bolt circle for Shimano road doubles. Sheldon Brown's spindle table lists Dura-Ace 7400–7402 doubles on a 112 mm spindle for a 68 mm English shell and 113 mm for a 70 mm Italian shell, with the right end of the spindle 3 mm longer than the left. Two changes during the run matter to buyers. Sheldon Brown's Dura-Ace timeline lists Superglide chainrings, shaped to help front shifts, from 1990, and "FC7410 Low Profile SG-X cranks" from 1994. The FC-7410 runs on a shorter 103 mm spindle in the same table, so it does not share a bottom bracket with the earlier cranks. Sheldon Brown also notes that some older Dura-Ace cranks used a shorter taper than most other Shimano cranks. The safe approach is to buy the matching Dura-Ace bottom bracket, or confirm the spindle spec before mixing parts.
Buying guide
About 71 listings turn up, mostly FC-7400 and FC-7402 doubles plus a few later FC-7410 cranks and some arm sets sold without rings; complete sets usually run $100–220 delivered. Read the model number on the back of the arm, because 7400–7402 cranks want a 112 mm (English) or 113 mm (Italian) spindle while the 1994 FC-7410 uses a 103 mm one, so the two don't share a bottom bracket. All take 130 mm BCD rings, so ring sizes are easy to change; check the arm length, that both rings and the fixing bolts are there, and look for cracks at the pedal eye and spider. Treat NOS and 180 mm sets over $400 as collector pricing, not the going rate.
$75.00delivered
An FC-7400 with 53/39 rings and 170 mm arms for $75 with free shipping, on Buy It Now from a 99.8% seller, well under the $100–220 band. Check the spider and pedal eyes for cracks in the photos, since the title gives no condition.
Shimano Dura Ace FC-7400 170mm 53/39T Crankset
$77.99est. delivered
An FC-7400 with 172.5 mm arms and a bottom bracket included for about $78 delivered from a 99.9% seller. A matching bottom bracket saves a separate purchase, but ask which spindle length it is and confirm both chainrings are on.
Shimano Dura Ace FC-7400 Crankset 172.5 BB Included
Delivered prices include shipping as eBay quoted it to a US address on Oct 3, 2026. Many sellers charge by distance, so your total may differ; eBay shows your exact total before you buy.
Snapshot
Snapshot captured — listings may have ended
Delivered prices include shipping as eBay quoted it to a US address on Oct 3, 2026. Many sellers charge by distance, so your total may differ; eBay shows your exact total before you buy.
Used$75.00delivered
$75.00 · free shipping
Buy It Now$75.00
Good buy
Cheapest complete FC-7400 at $75 shipped, with 53/39 rings and 170 mm arms.
Seller: winthrop6836
99.8% positive
Used$77.99est. delivered
$65.00 + $12.99 shipping
Buy It Now$65.00
Good buy
About $78 with a bottom bracket included; ask the spindle length and confirm the rings are fitted.
Seller: bicyclecollective
99.9% positive

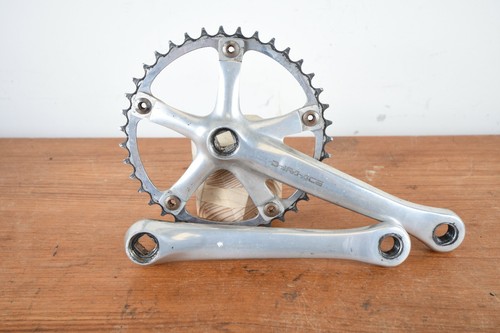

Used$119.98est. delivered
$109.99 + $9.99 shipping
Buy It Now$109.99
Our take
This is the later FC-7410, which uses a 103 mm spindle, not the 7400's 112–113 mm; the title only mentions a 39T ring, so ask whether the outer ring is included.
Seller: downtownusedbikes
99.9% positive

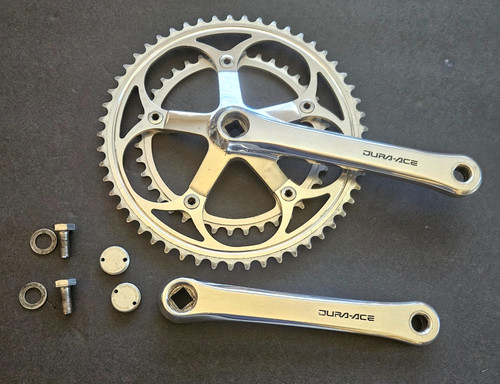

Used$122.00est. delivered
$110.00 + $12.00 shipping
Buy It Now$110.00
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
A polished FC-7400 with 53/39 rings and 175 mm arms, described as very good, at about $122 with Best Offer from a 100% seller.
Seller: adventurer90
100% positive
Used$136.00est. delivered
$120.00 + $16.00 shipping
Buy It Now$120.00
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Our take
An FC-7400 with 53/42 rings on the stated 130 BCD at about $136 with Best Offer; a fair mid-band price.
Seller: soundsourcecds
100% positive
Used$215.99est. delivered
$179.99 + $36.00 shipping
Buy It Now$179.99
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Heads-up: check the seller
167.5 mm arms with 50/38 rings at about $216, $36 of it shipping; the seller's feedback wasn't captured, so check it before buying.
Seller: unknown

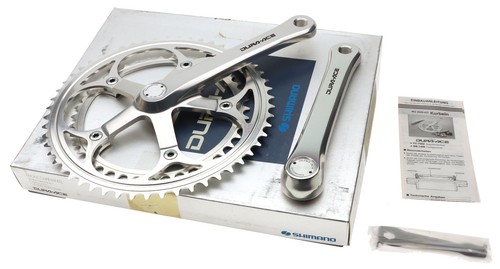

New old stock$419.99delivered
$419.99 · free shipping
Buy It Now$419.99
Heads-up: priced high
Claimed NOS and new in box at $420, over three times the typical price; ask for photos of the box before paying a collector premium.
Seller: benscycle
100% positive
Used$456.14est. delivered
$450.00 + $6.14 shipping
Buy It Now$450.00
This seller takes offers, and sellers often accept less than the asking price.
Fine if you might miss it? Send an offer first. Someone else can still buy it while you wait for a reply.
Want it for sure? Use Buy It Now.
Heads-up: priced high
Rare 180 mm arms with a BB-7410 bottom bracket at about $456; ask the spindle length, and only pay this if you need the long arms.
Seller: drsim_9935
100% positive
Prices and availability change daily. The full, current search on eBay shows every matching listing, including new ones since Oct 3, 2026.
